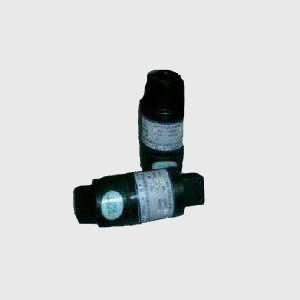

GCQ precision water filters
A, use
Water filtering type GCQ precision water filter is mainly used in dust spray pipe system, is an effective technical means to prevent sprayer clogging, filter adopts stainless steel or seamless steel pipe plugging zinc treatment. Has the advantages of small volume, high pressure resistance, small pressure loss, convenient to install and use.
Two, the structure and working principle
GCQ precision water filter is mainly composed of a bearing shell, filter and joint.
Three, use and maintenance
When in use, only need to access the spray pipe water filter system can, according to the mine water quality, water quality regularly remove filter backwashing.
Four, the main technical parameters
order number |
model |
filterability（m3/h） |
wirking pressure (MPa) |
weight(kg) |
(mm) |
1 |
GCQ-3 |
3 |
≤6.5 |
2.5 |
Ф58×150 |
2 |
GCQ-7 |
7 |
≤6.5 |
10 |
Ф158×280 |
3 |
GCQ-12 |
12 |
≤6.5 |
25 |
Ф218×280 |
