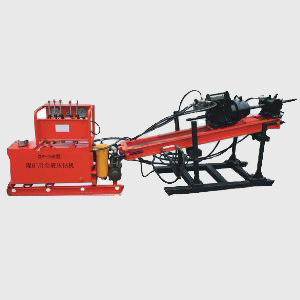

ZDY-750 drilling rig

1 用途及使用范围

1 Purpose and scope of use

1.1 ZDY-750型煤矿用全液压坑道钻机(以下简称钻机)，主要用于煤矿井下岩石坚固系数f≤8的各种煤层、岩层的瓦斯抽（排）放孔、注浆灭火孔、煤层注水孔、防突卸压孔、地质勘探孔及其他工程孔的钻进施工。用该钻机施工，要求钻场断面大于6.5m2，高度大于2.3m，宽度大于2.8m。

All hydraulic tunnel drilling rig with a 1.1 ZDY-750 type coal mine (hereinafter referred to as the drill), mainly used for coal mine rock firm coefficient f ≤ various coal seam, 8 layers of gas (row) on the hole, grouting drilling hole, hole, the outburst coal seam water injection pressure relief holes, holes and other engineering geological exploration hole. The drilling machine, drilling section for more than 6.5m2, the height is more than 2.3m, the width is greater than 2.8m.

2 主要结构和工作原理

2 of the main structure and working principle

2.1 钻机整体结构及液压系统管路连接，本机主要由泵站、动力头、机架、立柱总成、操纵台、钻具等部分组成。

Line 2.1 rig structure and connected to the hydraulic system, this machine mainly consists of pumping stations, power head, a frame, the upright column assembly, console, drilling and other components.

2.2 泵站（750ZDY01-0）

2.2 pumping station (750ZDY01-0)

泵站主要由防爆电机、双联齿轮泵、油箱、粗、精过滤器、冷却器、溢流阀等组成。 防爆电机驱动双联齿轮泵把电能转化为液压能（压力油），通过操纵多路换向阀将压力油输送到液压马达、给进油缸，从而实现钻机的各种运动。

Pumping station is mainly composed of explosion-proof motor, double gear pump, oil tank, coarse, fine filter, cooler, overflow valve. Explosion proof motor driving double gear pump converts electrical energy into hydraulic energy (oil pressure), through the manipulation of multiple directional control valve pressure oil can be transported to the hydraulic motor, feeding cylinder, so as to realize the various motion drill.

2.3 动力头（750ZDY02-0）

2.3 power head (750ZDY02-0)

动力头由液压马达、变速箱及水辫组成。其功能是通过压力油驱动油马达回转把液压能转变为机械能，压力油驱动液压马达回转,经变速箱变速后带动水辫中的水辫轴回转,从而带动钻具旋转。变速箱设有两档输出转速，便于在不同岩性的煤层、岩层中钻孔。水辫的作用是向钻杆传递动力和通水(或压风)以便排渣和冷却钻头。

The power head by a hydraulic motor, gearbox and water braid. Its function is through the pressure oil to drive the oil motor rotary hydraulic energy into mechanical energy, pressure oil to drive the hydraulic motor to drive the rotary, water braid axis water braid of the gearbox, which drives the rotating drill. Gearbox is provided with a two gear output speed, easy to drill holes in different lithology, rock seam. Water swivel function is to transfer power and water to the drill pipe (or air) to discharge and cooling the drill bit.

2.4 机架（750ZDY03-0）

The 2.4 frame (750ZDY03-0)

机架由机架体、底座、进给油缸、拖板、夹持器等部分组成。动力头固定在拖板上，压力油驱动给进油缸带动拖板及动力头沿导轨作往复运动，其功能是将液压能转变为机械能，从而带动钻具给进。机架体可沿底座上的前、后支撑柱上、下运动。夹持器（ZDY0308-0借用）主要由操作杆、连板、夹杆板、底座、轴承座、夹持器体等组成，用于装、卸钻杆。

The frame is composed of a frame body, a base, a feeding oil cylinder, plate, clamping device and other components. The power head is fixed on the carriage, driving pressure oil feeding oil cylinder drives the carriage and the power head for reciprocating movement along the guide rail, its function is to make the hydraulic energy into mechanical energy, which drives the tool feed. The frame body along the base of the former, after the support column, movement. The clamping device (ZDY0308-0 use) is mainly composed of an operating rod, connecting plate, clamping plate, a base, a bearing seat, the holder body etc, used for loading, unloading drill rod.

2.5 立柱总成（750ZDY04-0）

The 2.5 column assembly (750ZDY04-0)

立柱总成主要由千斤顶、下固定盘、内支撑管、外支撑管等组成。锚固在巷道或钻场顶底板之间，起支撑和稳固钻机的作用。

Post assembly is composed of a jack, the lower fixed disk, inside supporting tube, the outer support tube. Anchoring in the tunnel or the drill field top plate, supporting and stable drilling effect.

2.6 操纵台（750ZDY05-0）

2.6 console (750ZDY05-0)

操纵台由操纵台架、多路换向阀、节流阀（微调）、压力表、胶管等部分组成。其功能是通过操纵多路换向阀实现钻机的各种动作，对钻机实行集中控制。多路换向阀分别控制马达的正、反转，给进油缸带动动力头的正常进退和快速进退。节流阀可调节动力头给进速度。操纵合流阀可将大、小泵的压力油合并至给进油缸，实现动力头快速进退。操作台右边压力表指示动力头回转压力，左边压力表指示动力头进、退压力。

Console by the control bench, multi way reversing valve, throttle valve, pressure gauge (fine), hose and other components. Its function is realized through various action rig control multi way reversing valve, centralized control of drilling rig. Positive, reverse directional valve control motor, feeding oil cylinder drives the power head normal development and rapid advance and retreat. Throttle valve adjustable power head feed speed. Manipulation of confluence valve can be large, small pressure oil pump into the feeding cylinder, realizing the dynamic head of rapid advance and retreat. The operation indication of pressure gauge on the right side of the stage drive rotary pressure, the indication of pressure gauge, pressure head back into power.

2.7 钻具（750ZDY06-0）

The 2.7 tool (750ZDY06-0)

钻具包括钻杆、钻头、前置水辫。

Drilling tool comprises a drill pipe, drill, pre water braid.

钻杆直径为φ42mm、φ50mm两种，长均为800 mm，可根据用户要求制作。采用圆锥螺纹，连接具有强度高、拆装容易、对中性好等优点。

Drill pipe diameter φ 42mm, φ 50mm two, length of 800 mm, can be made according to user requirements. The conical thread connection, high strength, easy disassembly and assembly, the advantages of the neutral goo

钻头为三级组合式三翼硬质合金刮削型钻头，分为φ65mm中心钻头、φ87mm扩孔钻头和φ115mm（或Φ75mm中心钻头，Φ95mm二级钻头和Φ130mm三级钻头）扩孔钻头，可组合使用，也可二级和中心钻头组合，还可以单独用Φ65mm（Φ75mm）中心钻头。

Bit three combined three wing skiving carbide drill, divided into Phi 65mm, Phi 87mm reaming drill bit and 115mm (or 75mm center drill, Phi 95mm two bit and three bit 130mm Φ) drill hole, can be used in combination, can also be level two and bit combination, also can be used alone (Φ 65mm Φ 75mm) centre b
