Detection system refuge indoor environment parameters

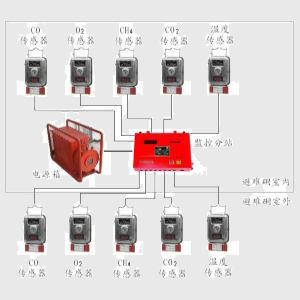

According to the "State Council on further strengthening enterprise safety in production work notice" (Guo Fa [2010] No. 23, "Chongqing coal mine refuge chamber fixed type technical requirements" and "mine flameproof (Jian Benan) for" safety type lithium ion battery power, our company developed the refuge of indoor and outdoor testing system environmental parameters, the system in strict accordance with the standard production, high reliability, stable running, to fill the domestic blank.
The order No. |
Product name |
Model |
Main technical parameters |
1 |
Flameproof and intrinsically safe lithium ion battery power |
DXJ144/24X |
Intrinsically safe output：18V 350mA |
2 |
Infrared methane sensor |
GJG100H（A） |
The measurement range of：0～100% |
3 |
Oxygen sensor |
GHY25 |
The measurement range of：0～25% |
4 |
Carbon monoxide sensor |
GTH500（B） |
The measurement range of：0～500PPm |
5 |
Temperature sensor |
GW50(A) |
The measurement range of：0～50℃ |
6 |
Infrared carbon dioxide sensor |
GRG5H |
The measurement range of：0～5% |
