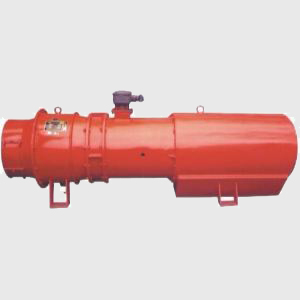

KCS series of mine wet filter cyclone dust collector
Mainly used for coal mine fully mechanized working face efficient dust, can also be used for coal mine dust extraction the transpersite purification.
Technical characteristics
(1) the design of filtering the boss structure network, filter filter net area is increased, reducing the filtration velocity, resulting in the premise of dust removal efficiency, reduce dust diameter, enhance the adaptability of coal mine dust condition;
(2) the integration structure design by supporting the fan and the diversion section, reduce the filter length and reducing the size of dust collector;
(3) use the patent technology of centrifugal cyclone dust dehydration, improve the dewatering efficiency of the precipitator;
(4) the anti clogging nozzle, solve the coal dust and the generally poor quality of water nozzle clogging problems, so that the dust remover can have a long-term stable operation;
(5) the KCS series mine wet filter cyclone dust collector won the three prize of scientific and technological achievements of Coal Industry Association in 2006, with patent protection.
Main technical parameters
Model KCS-180 KCS-250 KCS-550
Air volume (m3/min) 100 ~ 180 180 ~ 250 350 ~ 550
Working resistance (Pa) 1.2 1.5 1.8
Motor power (kW) 11 18.5 37
Water consumption (L/min) ≤ 15 ≤ 30 ≤ 40
The total dust removal efficiency (%) ≥ 99 ≥ 99 ≥ 99
The dust removal efficiency of respirable dust (%) ≥ 90 ≥ 90 ≥ 85
The dehydration efficiency (%) ≥ 95 ≥ 95 ≥ 95
Dimensions (mm) 2430 * 850 * 760 2900 * 850 * 828 3300 * 968 * 950
Mass (kg) 450 750 950
