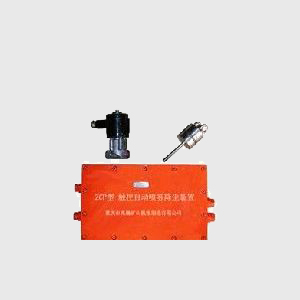

ZPC127 type mine automatic spraying dust removal device touch
ZPC127 type mine automatic spraying dust removal device touch (hereinafter referred to as the device) the control box adopts flameproof and intrinsically safe type structure, through different sensor configurations and normally closed solenoid valve can be widely used in belt conveyor for transshipment point, bunker coal discharging, coal machine with automatic spray dynamic spray dust, equipped with automatic spray often Mining Sensor of electromagnetic valve and the corresponding can be applied in the coal mining face, underground roadway, the LORD into the airway ventilation purification water curtain, improve the working environment, prevent dust hazards, protect the health of workers.
Automatic spraying dust removal device used in ambient temperature of 0 ℃ ~ 40 ℃, use environment relative humidity below 95% conditions.
Automatic water spraying dust removal device technical parameters:
Voltage: AC127V/36V2 is the output voltage: DC24V3
Maximum short-circuit current: 500mA 4
Voltage valve working voltage: DC24V5
Voltage valve pressure range: 0Mpa-7Mpa6
Working mode: continuous 7 main control box
Weight: 19kg
