Online monitoring system for LG_FJ10 type of mine main fan
One, overview
LG_FJ10 fan on-line monitoring system is the Chongqing Blue Technology Development Co., Ltd. according to the national standard "industrial fan with standard duct performance test" GB/T1236-2000 and coal industry standard "coal mine main fan site performance parameter measurement method" MT 421-2004 requirements, combined with the actual situation of coal mine safety in production and a new generation of main mine ventilation on-line monitoring system. It uses high performance microcontroller data acquisition and processing unit, with stable, reliable, accurate way to collect data is transmitted to the main control computer, the main control computer to calculate and display to store data, and running state of the fan for continuous online monitoring, and provide scientific basis for fan security, efficient operation.
The system can automatically monitor running state of the fan, including data monitoring: static pressure, dynamic pressure, air volume, single motor voltage, current, power, efficiency and other parameters, the stator winding of the motor, motor bearing temperature coefficient, motor vibration intensity and other performance parameters, the running state parameters monitoring real time display, a motor current, voltage, power factor and other parameters of the operation curve and fan static pressure, flow, power output, efficiency and other parameters of the operation curve.
Two, the characteristics and composition
1 Characteristics
Using a master-slave computer monitoring of advanced structure, each part independently of each other, improve the stability of the system, the installation, maintenance convenience. High performance microprocessor controlled by each function module, powerful function, good expandability, strong anti-jamming capability, operation and high precision, convenient for maintenance. The software graphical interface to display the working status, rich images, vivid, simple operation, easy to use. Using advanced computer network technology, we can realize remote data sharing.
2.

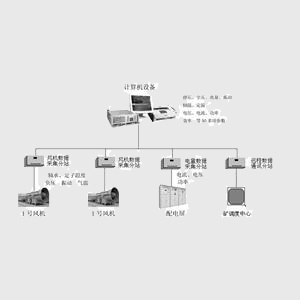

This system with industrial control computer as the core, mainly by the signal measuring device and the sensing (transmission) device, signal acquisition and conversion station etc..
Three, the system function
The main functions of the system are: real-time monitoring parameters of ventilation system, ventilation performance parameter, electrical parameter, bearing temperature, vibration of the motor, data management, report management, performance testing, remote communication, details are as follows:
Real time monitoring of ventilation system pressure, temperature, air entrance entrance.
Real time monitoring of fan performance parameters: flow, full / static pressure, efficiency.
Real time monitoring of fan motor electrical parameters: current, voltage, power.
Real time monitoring and alarm in the ultra limit bearing temperature.
Real time monitoring of stator temperature and limit alarm at.
Real time monitoring of motor vibration and timed alarm at.
Reservation extensible interface, but other parameters measurement of atmospheric temperature, humidity, atmospheric pressure, gas concentration, CO concentration, CO concentration.
Eight input can monitor the running state of the equipment, eight open weight to control the operation of equipment.
Real time data display, storage, query.
Automatic report generation, storage, query, print.
Generation data can be remote communication.
Four, the main technical indexes
1 working voltage: 220V 50Hz AC
2 environment temperature: -10 ℃ ~ +50 ℃
3 Humidity: ≤ 85%
4 transmitter accuracy: 0.5
5 monitoring accuracy:
Traffic: 2.5
Pressure: 0.5
Electrical parameters: 0.25
Temperature: 0.5
Vibration: level 0.5
Other: 1.5
Five, monitoring parameters
Traffic: 4000 ~ 125000 m ³ /min
Pressure: 1000 ~ 0 mmH O
Temperature: 0 ~ 150 ℃
Voltage: 0 ~ 10kV
Current: determined by the transformer
Power: no limit
Vibration: 0~20 mm/s- 上一篇：没有了
